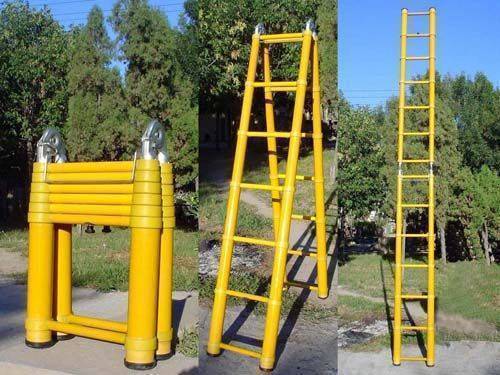

Insulated ladder
1. main materials: 1.1 frame: orange or yellow glass fiber foam filled tube. 1.2 ladder brace: orange or yellow glass fiber foam filled tube. 1.3 Reinforcing rib: orange or yellow glass fiber foam filled tube. 1.4 Hook or other joint fittings: stainless steel. 1.5 movable wheel: high strength metal+nylon. 1.6 rope: insulated nylon rope. 2. Features. 2.1 insulation strength test: 30kV. 2.2 insulation between ladder supports: 30kV. 2.3 antiskid 2.4 high mechanical strength and good bending and torsion resistance. 2.5 high weather resistance and corrosion resistance. 3. Technical details. 3.1 Applicable standards. 3.2 Design according to customer requirements. 5. Precautions. 5.1 Please check the main body and parts of the ladder according to GB17620 or EN 131 before use. If there are defects or cracks, please do not use them. When using ladders, please observe the operating rules for ladders and live lines. 5.3 Please protect the ladder to avoid damage and moisture. 5.4 Regularly check the ladder every year to ensure that it is in good condition. 6. Product assembly method. Standard assembly, according to customer requirements, bulk.
technical parameter
号No. | 产品编号Products Code | 尺寸 Size M | 最大站立高度 Max. Standing M | 最大可达到高度Reach Height M | 阶梯数No.of Step | 承重Load Capacity kg | 重量Weight KG |
1 | TLZT01500501 | 1.5 | 0.91 | 2.91 | 5 | 120 | 4.90 |
2 | TLZT01800601 | 1.8 | 1.21 | 3.21 | 6 | 120 | 5.97 |
3 | TLZT0210701 | 2.1 | 1.51 | 3.51 | 7 | 120 | 7.06 |
4 | TLZT0240801 | 2.4 | 1.81 | 3.81 | 8 | 120 | 8.17 |
5 | TLZT0270901 | 2.7 | 2.11 | 4.11 | 9 | 120 | 9.30 |
6 | TLZT0301001 | 3.0 | 2.41 | 4.41 | 10 | 120 | 10.45 |
7 | TLZT0331101 | 3.3 | 2.71 | 4.71 | 11 | 120 | 11.62 |
8 | TLZT0361201 | 3.6 | 3.01 | 5.01 | 12 | 120 | 12.81 |
